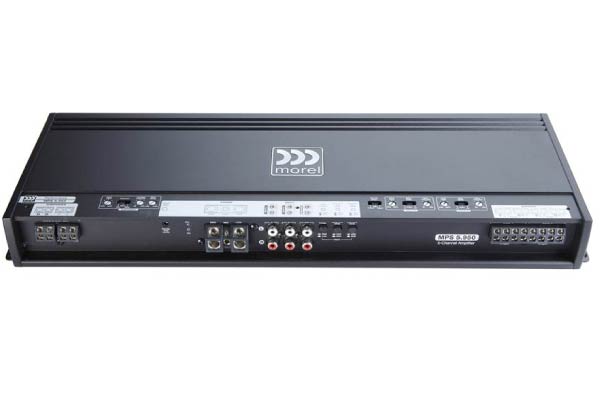

MOREL MPS5.950
• 5-channel car amplifier
• 70 watts RMS x 4 + 350 watts RMS x 1 at 4 ohms
• 100 watts RMS x 4 + 550 watts RMS x 1 at 2 ohms
• 200 watts RMS x 2 bridged at 4 ohms + 550 watts RMS x 1 at 2 ohms
• Class AB design on front and rear channels, Class D on sub channel
o 100 dB signal-to-noise ratio, 0.05% distortion on front and rear channels, 0.15% distortion on sub channel
• variable high- and low-pass filters (40-400 Hz, 12 dB/octave) on front and rear channels
• variable low-pass filter (40-220 Hz, 12 dB/octave) on sub channel
• variable bass boost (0-12 dB at 45 Hz) on sub channel
• switchable subsonic filter (off, 25, 35 Hz) on sub channel
Other Features:
• preamp and speaker-level inputs
o speaker-level inputs require speaker wire to RCA adapters
o speaker-level inputs feature DC offset or signal sensing turn-on
• optional MPS-R1 wired remote bass level control available soon
• wiring, fuse, and hardware not included with amplifier
o 4-gauge power and ground wires and an 80-amp fuse recommended
• 19-1/4"W (including flange) x 2-1/8"H x 6-3/4"D
